Helios FLEX Time of Flight (ToF) 3D Camera Bundle
用于嵌入式视觉系统的 Helios板级型号(HLS003S-001ETX2), 其设计用于连接到 NVIDIA® Jetson TX2。3D 相机模块通过 MIPI 连接流式传输原始数据。深度信息使用随附的 Arena SDK 在 Jetson TX2 上处理。HLS003S-001ETX2：像素640 x 480，30帧/秒，MIPI 连接，工作范围：高达6米
所属分类
Helios2 系列3D相机
关键词

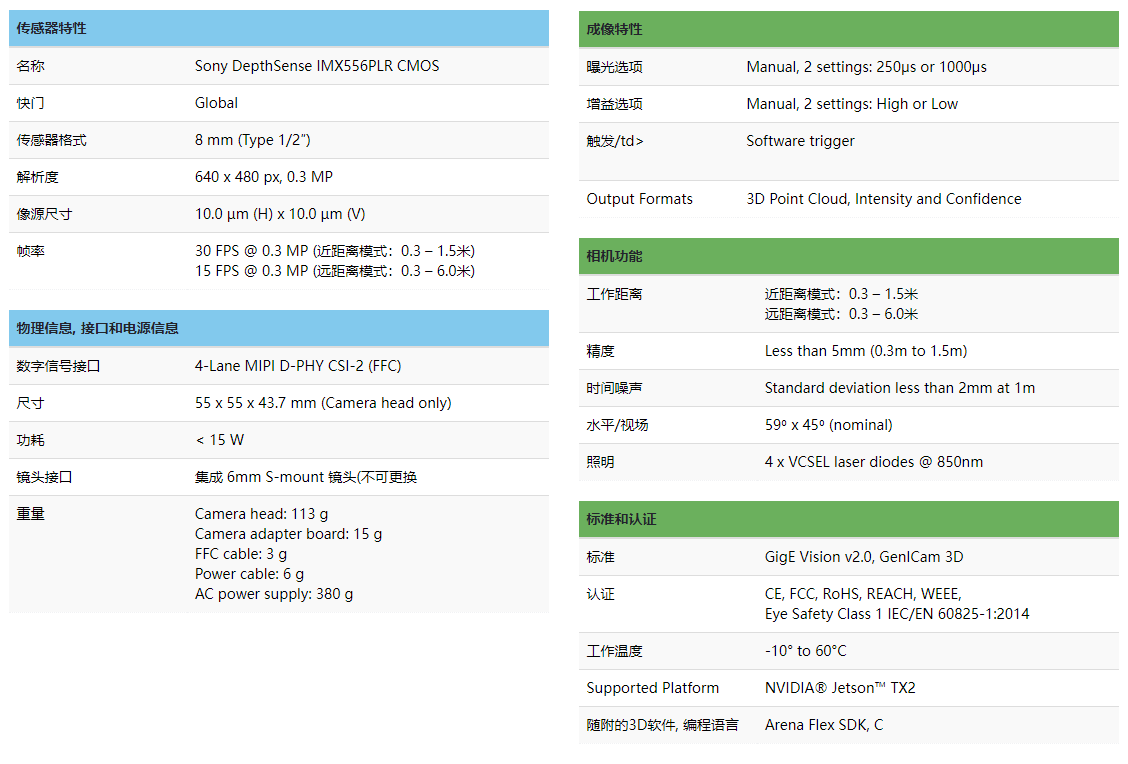

- 规格
- EMVA 1288 数据
- 图纸
-
- 商品名称: Helios FLEX Time of Flight (ToF) 3D Camera Bundle
- 商品编号: HLF003S
- 百万像素: 0.3 MP
- 分辨率: 640 x 480 px
- 帧率: 30 FPS
- 传感器型号: Sony DepthSense IMX556 CMOS
- 快门: 全局
- 快门: 全局
- 传感器型号: Sony IMX566 CMOS
-

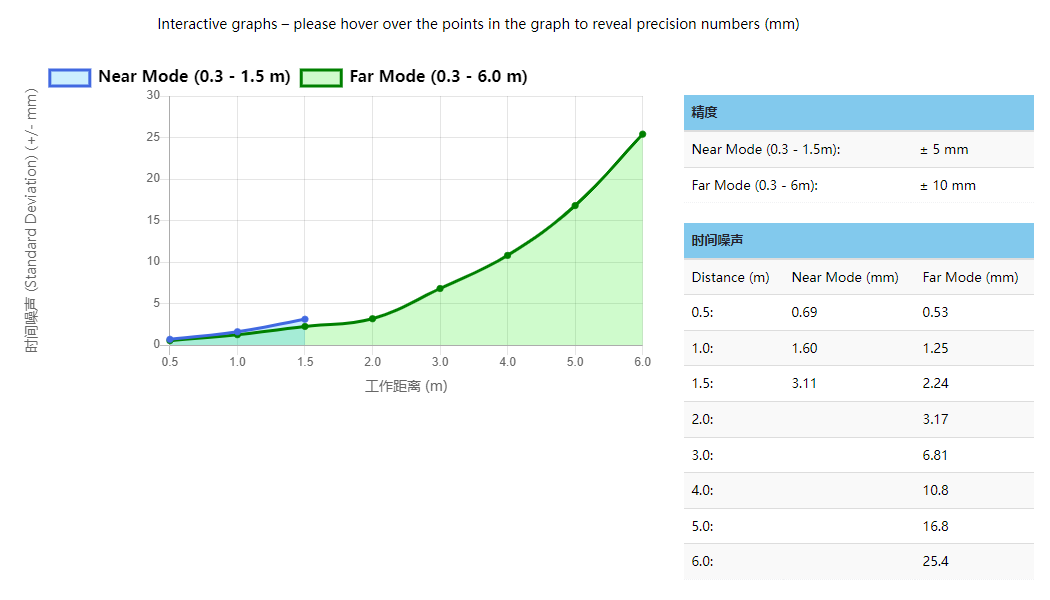

Test Conditions:
- Target: White paper mounted on bar attached to motion stage
- Helios camera: mounted on tripod with front of case aligned to stage zero position
- Camera setting: Coord3D_C16 Pixel Format, bilateral filtering OFF, 1.5m or 6m operating mode, camera warmed up for 20 minutes.
- Imaging environment: Room light ON during testing
- Motion stage moved in 10mm steps, for each step, record 10 x 10 pixels at image center, 32 images
- Accuracy measured as difference between motion stage position and camera’s average measured depth over the 10 x 10 pixels region of interest
-
Helios 板级图纸
