Helios Time of Flight (ToF) 3D 相机
此 Helios 相机型号为(HLS003S)旨在连接到运行 Windows 或 Linux 的电脑主机。深度信息可在 Helios ISP 上直接处理，并通过千兆以太网连接进行流式传输。HLS003S：30 帧时为解析度为640 x 480，其工作范围可达 6米。
所属分类
Helios2 系列3D相机
关键词

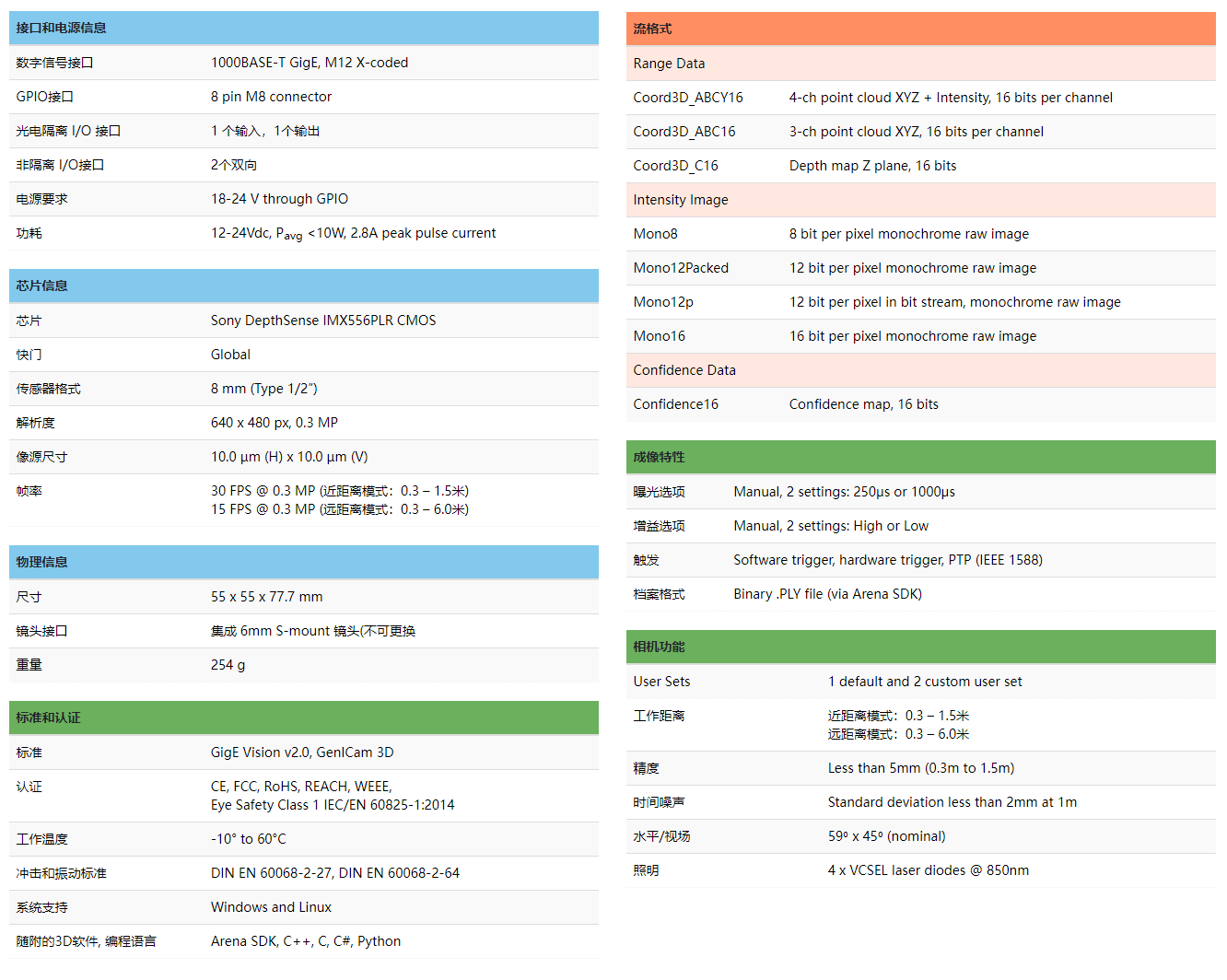

- 规格
- EMVA 1288 数据
- 图纸
-
- 商品名称: Helios Time of Flight (ToF) 3D 相机
- 商品编号: HLS-BUN
- 百万像素: 0.3 MP
- 分辨率: 640 x 480 px
- 帧率: 30 FPS
- 传感器型号: Sony DepthSense IMX556 CMOS
- 镜头接口: 集成 6mm S-mount 镜头
- 黑色/彩色: 黑白
- 分辨率: <50 万像素
- 快门: 全局
-

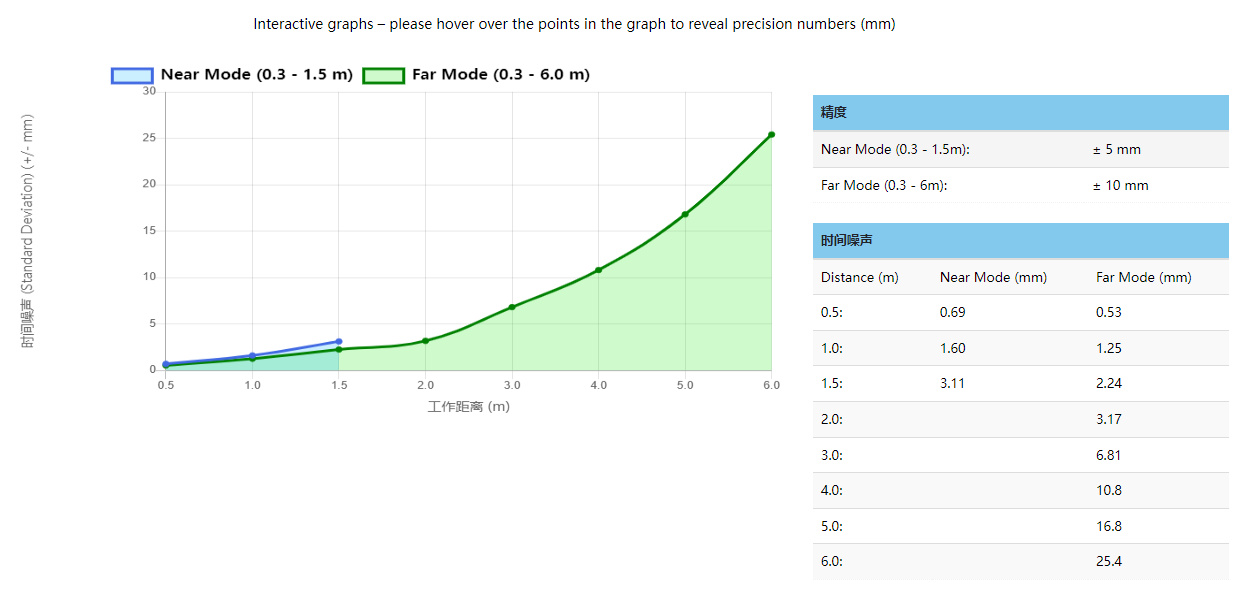

Test Conditions:
- Target: White paper mounted on bar attached to motion stage
- Helios camera: mounted on tripod with front of case aligned to stage zero position
- Camera setting: Coord3D_C16 Pixel Format, bilateral filtering OFF, 1.5m or 6m operating mode, camera warmed up for 20 minutes.
- Imaging environment: Room light ON during testing
- Motion stage moved in 10mm steps, for each step, record 10 x 10 pixels at image center, 32 images
- Accuracy measured as difference between motion stage position and camera’s average measured depth over the 10 x 10 pixels region of interest
-

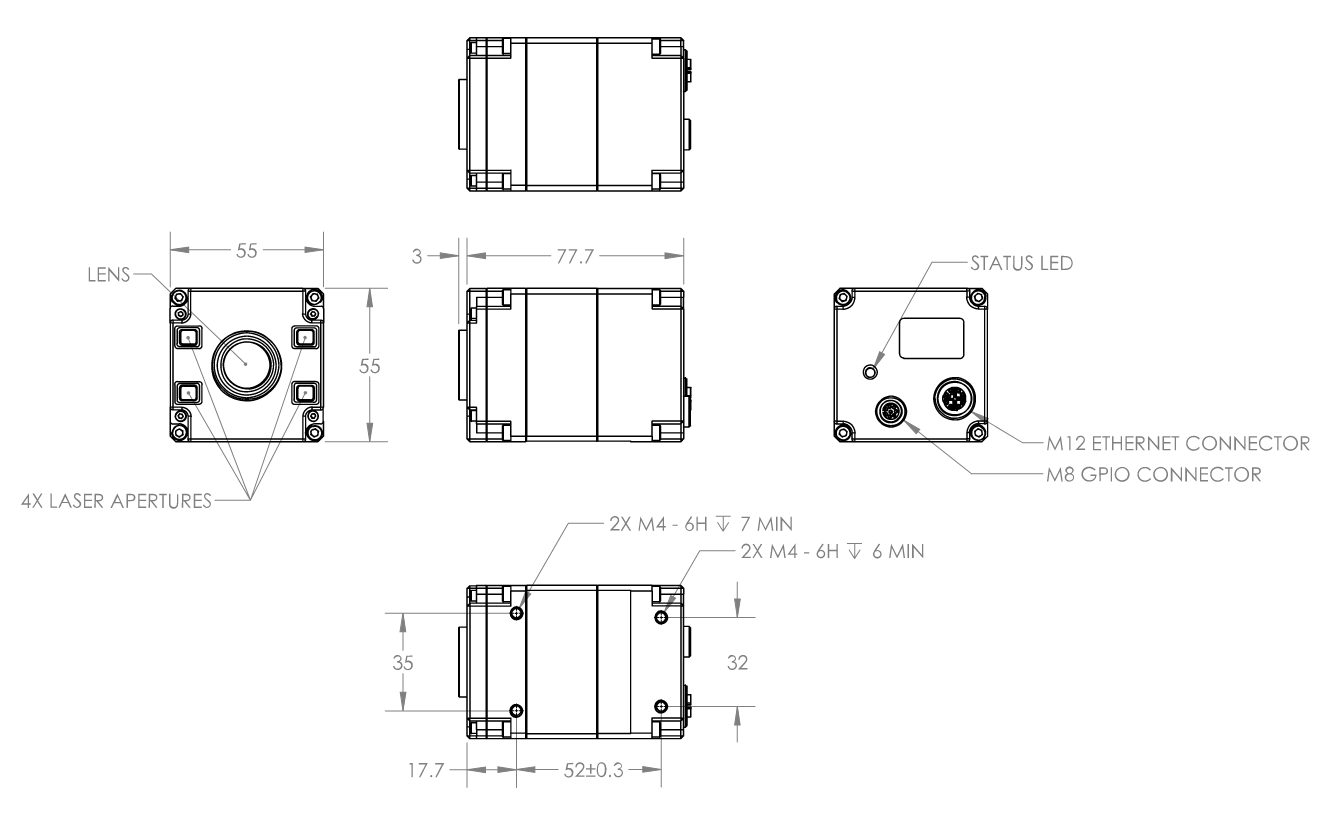

Helios 3D Time-of-Flight 图纸
