Helios2 Time of Flight (ToF) IP67 3D 相机
与原始Helios相比，此Helios2摄像机型号（P / N：HLT003S-001）提供了更高的准度和精度。此外，它还提供IP67保护，更高的行业抗扰性标准，以太网供电以及更远的8.3 m HLT003S工作范围：30 FPS时为640 x 480，IP67，千兆以太网和PoE，工作范围：高达8.3m
所属分类
Helios2 系列3D相机
关键词
- 规格
- EMVA 1288 数据
- 图纸
-
- 商品名称: Helios2 Time of Flight (ToF) IP67 3D 相机
- 商品编号: HLT003S
- 百万像素: 0.3 MP
- 分辨率: 640 x 480 px
- 帧率: 30 FPS
- 传感器型号: Sony DepthSense IMX556 CMOS
- 快门: 全局
- 黑色/彩色: 黑白
- 分辨率: <50 万像素
- 快门: 全局
- 传感器型号: Sony IMX566 CMOS
-
Test Conditions:
- Target: White paper mounted on bar attached to motion stage
- Helios2 positioning: mounted on tripod, laser distance meter used to measure distance from case front to stage zero position
- Camera setting: Coord3D_C16 Pixel Format, bilateral filtering OFF, camera warmed up for 20 minutes.
- Imaging environment: Room light on during testing, black material used to minimize reflections off floor
- Motion stage moved in 50mm steps, for each step measure depth over 10×10 pixel ROI at image center, repeat 32 times at each position
- Accuracy measured as difference between camera’s average measured depth across the ROI and 32 images and the ground truth depth (stage zero distance + stage position)
-

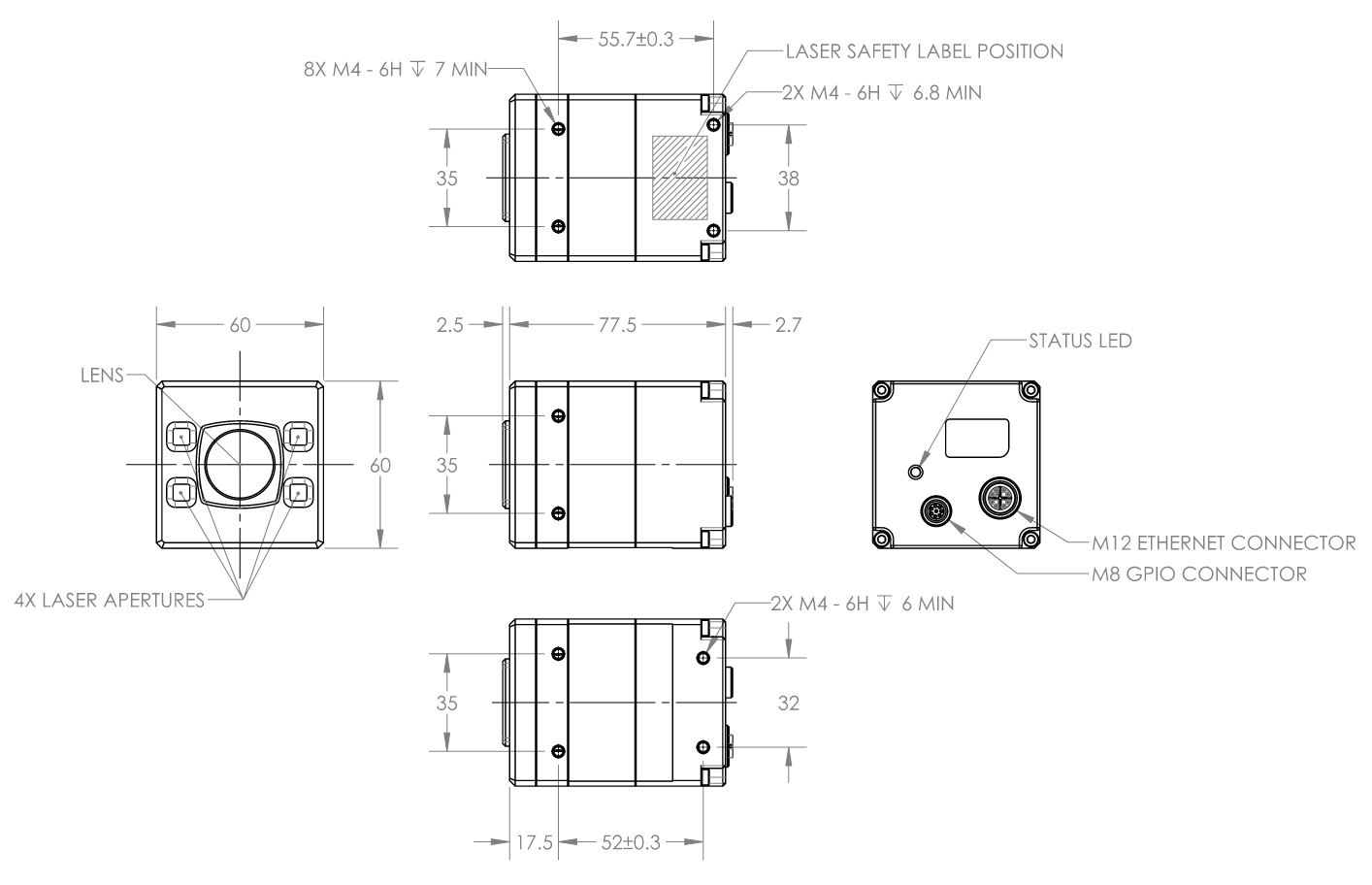

Helios2 3D Time-of-Flight 图纸
